How to install TOMCAT on server by using panel CWP

The Apache Tomcat software is an open-source implementation of the Java Servlet, JavaServer Pages, Java Expression Language, and Java WebSocket technologies. The Java Servlet, JavaServer Pages, Java Expression Language, and Java WebSocket specifications are developed under the Java Community Process.

Apache Tomcat, Tomcat, Apache, the Apache feather, and the Apache Tomcat project logo are trademarks of the Apache Software Foundation

Apache Tomcat/8.0.14The Apache Tomcat Project is proud to announce the release of version 8.0.x of Apache Tomcat. Apache Tomcat 8.0.x is intended to replace 8.0.x and includes new features pulled forward from Tomcat 8.0.x. The minimum Java version and implemented specification versions remain unchanged. The notable changes compared to 8.0×2 include:


Various HTTP/2 improvements.

Fixes for sending file related issues that could cause subsequent requests to experience IllegalStateExceptions.

Servlet 4.0 early access updates.

Step to install Tomcat on the server using CWP panel

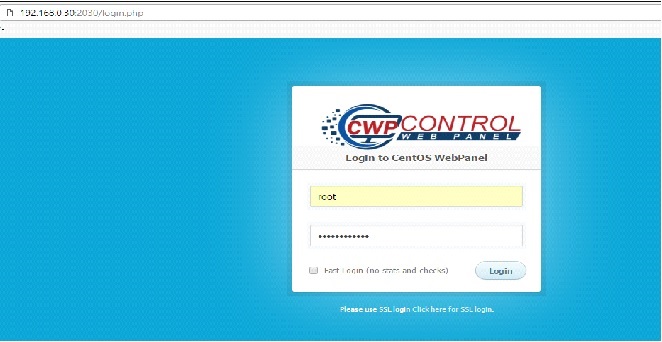

Step 1: Login into your CWP panel using IP: 2030 in a browser.

Control Wen Panel

Step 2: Once you got the login into your CWP panel, GOTO Apache Setting >> Tomcat Manager.

Refer below screen.

Tomcat server

Just click on Tomcat Manager, it will provide screening for installation.

Step 3: Refer below screen, click on Install Tomcat, it will start installation. It will take up to 15-20 min to install.

Tomcat server

Step 4: After 15-20 when installation done, it will prompt for below the screen.

It will show success Tomcat Installed.

Tomcat server

Step 5: As we know Tomcat work on port no. 8080, you can also verify from browser. Just put below url under your browser Url: IP: 8080 i.e:

Tomcat server

Step 6: If your url: IP: 8080 i.e: show above screen, it means Tomcat installed on your server properly. Now you can host your website using Tomcat.

If you want to start, restart or stop the tomcat service, then just, GOTO Appache Setting >> Tomcat Manager.

Tomcat server

Click on Start Tomcat. It will start Tomcat service.

For a more information Contact us.
